Electromagnetic navigation bronchoscopy transbronchial lung nodule ablation with Illumisite^TM platform corrects CT-to-body divergence with tomosynthesis and improves ablation workflow: a case report

Introduction

Patients with multifocal lung cancers or multiple lung oligometastases are candidates for lung-preserving treatment options (1,2), among which local ablative therapies are increasing in interests and applications (3-5). Transbronchial route of local ablation using microwave energy in the hybrid operating room (HOR) has been described, yielding good short-term safety and mid-term local control rates (6). However, this is limited by CT-to-body divergence, leading to imprecision of navigation. The Illumisite^TM platform utilizes real-time imaging to correct for the CT-to-body divergence, in addition to fluoroscopic navigation technology to enhance the visibility of lung nodules. Alignment with the target nodule is visualized and maintained throughout procedure as the tip of the extended working channel (EWC) provides positional information even after the locatable guide (LG) has been removed. We present below our first case of electromagnetic navigation bronchoscopy (ENB) transbronchial microwave ablation of lung nodule using the Illumisite^TM platform in the HOR. We present this case in accordance with the CARE reporting checklist (available at https://acr.amegroups.com/article/view/10.21037/acr-22-49/rc).

Case presentation

A 66-year-old lady with a past history of multiple treated lung adenocarcinomas was found to have growing suspicion of one of the remaining lung nodules. She had a T2N0M0 EGFR G719X mutation positive lung adenocarcinoma with right lower lobectomy 5 years ago, showing complete resection and not requiring adjuvant treatment. Subsequent CT showed 2 more suspicious left lower lobe nodules which were wedge-resected 1 year ago, pathology showing a 4 mm EGFR mutation negative adenocarcinoma-in-situ and a 1 mm atypical adenomatous hyperplasia. Upon follow up of the remaining multiple ground-glass opacities (GGO) in bilateral lungs, one in the right middle lobe (RML) (Suzuki class 3) had increased in size and solidity slowly over years. Her forced expiratory volume in 1 second (FEV1) was 110% predicted while diffusion capacity of carbon monoxide (DLCO) was 68% predicted. Thoracic multi-disciplinary meeting concluded that this mixed RML nodule was likely an evolving early primary lung adenocarcinoma similar to the previous resected nodules. The patient was referred to us for lung-conserving ablative therapy, since there were other lung nodules scattered in bilateral lobes which may require future treatment in case of progression. The target RML nodule was approximately 1 cm in maximal diameter, adjacent to a 3 mm vessel bifurcation, with a narrow airway leading to the lesion (bronchus sign positive). It consisted of mostly GGO with a solid centre (Figure 1). The patient agreed for transbronchial ENB microwave ablation of the lung nodule after discussion of other local treatment options, and informed consent was taken.

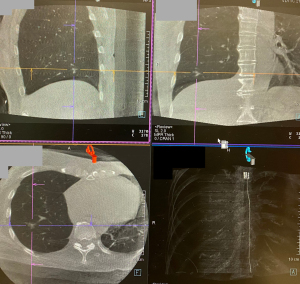

Figure 1 The target right middle lobe lesion is shown in three axes (sagittal, coronal, axial) upon CBCT spin intra-operatively. CBCT, cone-beam CT; CT, computed tomography.

On the day of procedure, the patient underwent general anaesthesia and was intubated with single lumen endotracheal tube. Similar to all other ENB cases, bronchoscopic toileting and pre-operative cone-beam CT (CBCT) was performed (Figure 1), followed by registration and navigation by the Illumisite^TM ENB system. A 180-degree EWC was used and the LG was navigated to a point just within 2.5 cm from the centre of lesion. Local registration by fluoroscopic navigation to correct for CT-body divergence was performed using a mobile C-arm 60-degree spin to generate tomosynthesis images (Figure 2). The GGO was not readily seen on fluoroscopy, but the nodule marking was accurate based on the visualized adjacent vessels (Figure 3). By comparing the 3D reconstructed view to the 2D fluoroscopy image, the lesion was much better visualized and can be marked for subsequent navigation. After the position of the green ball (representing the target lesion) was adjusted by Illumisite^TM platform, the LG was renavigated to a more distal airway, and with the help of CBCT and fluoroscopy, the LG was directly aligned with the adjusted target (Figure 4). A CrossCountry^TM needle (Covidien^TM, Plymouth, MN, USA) for transbronchial access was deployed with patient in inspiration, corresponding to the green ball’s most bullseye view. CBCT showed the needle puncturing through the GGO (Figure 5), and the dilator and EWC was advanced over the needle to the desired position. Due to the positional electronics available in the tip of the Illumisite^TM EWC, we placed it at 1 cm beyond the centre of GGO lesion so that the centre of ablation zone will coincide with the centre of lesion. The CrossCountry^TM tool was then exchanged to Emprint^TM Ablation Catheter (Covidien^TM, Plymouth, MN, USA) and unsheathed, with the final CBCT showing satisfactory position with predicted ablation margin >10 mm. The predicted ablation margin is defined as the minimal distance between edge of lesion and edge of predicted ablation zone, the size of which was provided by the manufacturer. After the first ablation with 100 W for 10 minutes, the ablated zone was smaller than predicted especially over the side where there was heat sink effect due to the 3 mm blood vessel. Re-ablation at the same position with 100 W for 10 minutes was performed, CBCT showed ablation zone being more consolidated and minimal margin improved to 4 mm, not taking into account tissue contraction from ablation (Figure 6). Total procedure time was 171 minutes and radiation dose was 26,129 µGym².

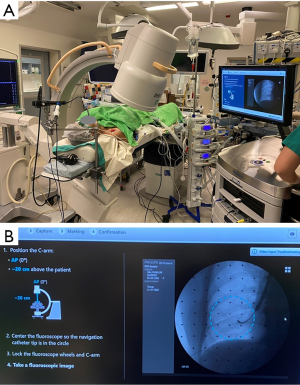

Figure 2 Intraoperative setup during Illumisite^TM lung ablation. (A) shows the set up for ENB ablation using the Illumisite^TM platform. The patient lies supine and is intubated with single lumen endotracheal tube. The bronchoscope is mounted on the head-side of patient and connected to the Illumisite^TM console/screen at patient’s right. The mobile C-arm for acquiring fluoroscopic images for tomosynthesis enters at patient’s left. (B) Fluoroscopy shows the metallic dots on the electromagnetic board which was placed underneath patient. The dots allow operator to position the C-arm at the most appropriate focal length for best image acquisition in subsequent C-arm spin. ENB, electromagnetic navigation bronchoscopy.

Figure 3 Augmented fluoroscopy shows the lesion within an orange circle which is marked by the operator to help the system recognize the target lesion for subsequent tomosynthesis.

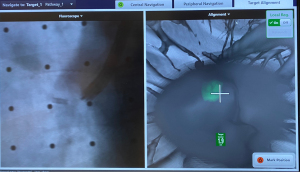

Figure 4 On top right hand corner, local registration was “on” so that the green ball represents the updated nodule position after adjusting CT-to-body divergence. Left hand panel shows real-time fluoroscopy, while right-hand panel shows the tip of the EWC is now directed at the green ball, at 1.9 cm from the centre of lesion. Fine adjustment of the EWC tip allows accurate placement of needle subsequently. EWC, extended working channel; CT, computed tomography.

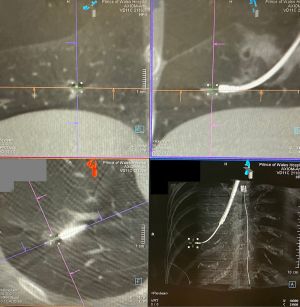

Figure 5 The CrossCountry^TM needle is deployed and shown to be puncturing lesion (green cross) in all 3 axes in CBCT. CBCT, cone-beam CT; CT, computed tomography.

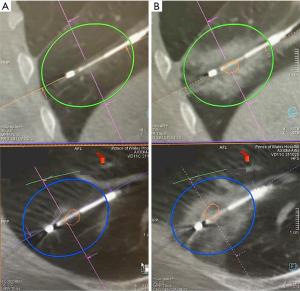

Figure 6 Pre- and Post-ablation cone beam CT findings. (A, left sided panels) and (B, right sided panels) show the pre- and post-ablation images. The original lesion was marked by orange tracings, while the green and blue ovals represent the predicted ablation zone. In (B) ground-glass opacities surrounding the nodule represent the actual ablation zone after 2 ablations at 100 W for 10 minutes. CT, computed tomography.

The patient had uneventful recovery and was discharged on post operative day 1; 16 days later, the patient received right upper lobectomy for resection of multiple right upper lobe nodules. The post-ablation 1-month and 4-month CT scans show shrinkage of ablation zone (Figure 7) and no short-term complications or early recurrence.

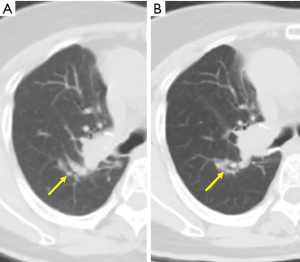

Figure 7 Post-ablation CT findings upon follow up. (A,B) Shows the CT scan at 1-month and 4-month post-ablation respectively, which demonstrates a progressive reduction in ablation zone changes, and no evidence of early recurrence or complications. Note that right upper lobectomy has been performed 16 days after ablation for other peripheral lung nodules. CT, computed tomography.

All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

This is the first case of ENB transbronchial microwave ablation of lung nodule using the Illumisite^TM platform in the HOR. The Illumisite^TM platform is the first navigational system on market to correct for CT-to-body divergence, that is the discrepancy between the static pre-operative planning CT scan and the dynamic breathing lung. This digital tomosynthesis-based navigation correction is achieved by utilizing fluoroscopic navigation technology which creates a 3D image enhancing the nodule’s visibility, so that the adjusted nodule position (represented by the green ball on screen) can be updated. Throughout procedure, it provides real time confirmation that the catheter is aligned to the nodule, and this alignment can be maintained even after the LG is removed, owing to the presence of sensor coils embedded in the tip of EWC. This continuous positional data allows for multidirectional sampling and more thorough biopsy, as have been demonstrated in biopsy series using this platform (7,8).

The improved navigation and accuracy provided by this platform may also simplify the workflow of transbronchial microwave lung ablation. In the present case, the unadjusted green ball position initially led us to a more superior airway, but after nodule adjustment with fluoroscopic navigation technology, we were able to quickly recognize that the LG was in a slightly different airway and renavigated accordingly. Fewer numbers of CBCT and therefore less radiation was required in order to confirm that the LG had reached the target nodule. In addition, in previous models without EWC positional electronics, after the LG is removed the EWC often returns to its original curvature, and deployment of subsequent CrossCountry^TM needle would require fluoroscopy marking and multiple confirmation in right anterior oblique (RAO) and left anterior oblique (LAO) planes. Often after needle deployment, CBCT would show that the needle is slightly off-centre and redeployment of needle was required, especially for ablation where a high level of precision is required. With the continuous positional data provided by the tip of the new system’s EWC, we would be able to advance the CrossCountry^TM needle directly at the green ball in the most bullseye view, and CBCT indeed confirmed direct puncture of the nodule. Moreover, contrary to previous platforms, apart from the direction, the exact distance between the centre of nodule and the tip of EWC is available too, allowing precise placement of the tip of ablation catheter. Since the centre of ablation is 1 cm proximal to the tip of Emprint^TM ablation catheter, we advanced the EWC 1 cm beyond the centre of lesion and placed the ablation catheter flush to the EWC, so that the centre of ablation coincided with the centre of lesion. This is confirmed by CBCT and did not require further adjustment of the catheter before ablation.

In general, the Illumisite^TM platform improves navigational accuracy and is best suited to institutions where CBCT is a scarce resource (9). For biopsy, the fluoroscopic navigation technology with adjustment of green ball location is probably sufficient for accurate biopsy without the need of CT to confirm needle position. However, for lung ablation, without a hybrid theatre and floor-mounted CBCT, one would rely on mobile CBCT machines for lung nodule ablation, and each CBCT requires additional time and effort. Therefore, the workflow of ablation and biopsy can be greatly improved by decreasing the number of CBCT spins required for confident instrument placement.

The accuracy of Illumisite^TM platform is still limited by the solidity of lesion. Solid components in mixed GGOs can be augmented by tomosynthesis much more than pure GGOs. In addition, the need for parking and unparking of mobile C-arm machine in a hybrid theatre with floor-mounted CBCT machine may prolong procedure, however this may be offset by more accurate navigation in the first attempt, thus saving time from repeated CBCT spins due to mis-navigation related to CT-to-body divergence. Total radiation dose in the present case was 26,129 µGym², only slightly less than the average of 27,120 µGym² in our previous case series of ENB ablation. This may be due to the effect of initial learning curve of using the new platform, and the need of double ablation in this case.

Conclusions

Illumisite^TM is an advance electromagnetic navigation platform that corrects for CT-to-body divergence by fluoroscopic navigation technology. Accurate access to nodule is ensured by the adjusted nodule location, and continuous positional data is provided by the novel embedment of positional coils at the tip of EWC. This precision is especially important for the placement of ablation catheter, as slight deviation would lead to insufficient ablation margin and future recurrence.
